P1.667 Indoor LED Video Wall Module 200mmx150mm
NationStar Gold Wire SMD RGB LED Chip
NovaStar LED Sending Card Receiving Card
High Brightness 1000nits – 1800nits
High Refresh Rate 3840Hz – 8600Hz
Product Description: Indoor Full Color P1.667 LED Display Module LED Display Screen

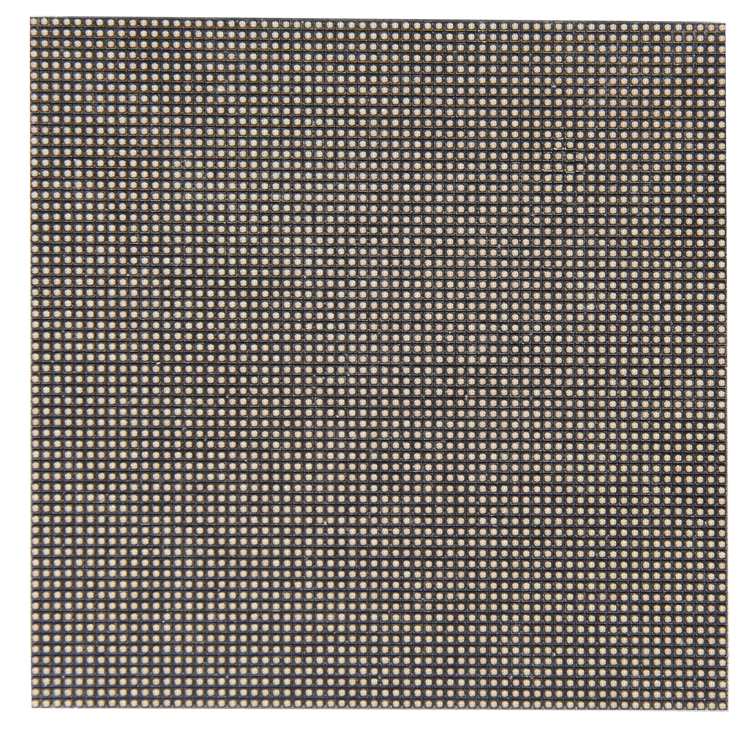

P1.667 Indoor LED Video Wall Module
Description
P1.667 Indoor LED Video Wall Module P1.667 Indoor HD LED Video Wall Module 200MMx150MM 120dots×90dots
LED IC Driver
To achieve the best visual performance of Leeman LED display and Leeman LED panel, we use the best Driving IC, such as MIB5153,MBI5124, ICN2153,ICN2038S with high refresh rate 3840Hz / 5760Hz and high grey level with the latest technologies.
NationStar SMD 3 in 1 LED
Adopting high reliable SMD0808, SMD1010, SMD1212, SMD1515, SMD2121 and SMD3528 to ensure flexible LED screen modules with high refresh rate 1920Hz 3840Hz 5760Hz 6420Hz
Indoor LED Display Module Pixel Pitch Avaliable
P0.9mm, P1.25mm, P1.56mm, P1.667mm, P1.875mm, P1.923mm, P2mm, P2.5mm, P3mm, P3.91mm, P4mm, P4.81mm, P5mm, P6mm, P7.62mm, P10mm and small pixel pitch series such as P1.875mm, P1.25mm, P1.538mm, P1.667mm, P1.86mm etc
Outdoor LED Display Panel Available
P2mm, P2.5mm, P2.604mm, P2.976mm, P3mm, P3.076mm, P3.33mm, P4mm, P5mm, P3.91mm, P4.81mm, P5.95mm, P6mm, P6.67mm, P8mm, P10mm, and DIP 1R1G1B series such as P6mm, P8mm, P10mm, P16mm, P20mm, etc. Various sizes 320*160mm, 160mm*160mm, 192mm*192mm, 250mmx250mm, 256mm*128mm, 320mm*320mm
High Definition LED Display
Delivers truly amazing picture in every detail with extraordinary pixels producing an image that is HD quality in an LED screen
Narrow Pixel Pitch
P1.56/P1.66/P1.923 narrow pixel pitch HD LED Billboard Max 225pixel per square inch
Ultra-wide viewing angle
160° viewing angle from both vertical and horizontal direction
Natural Color
16bits color depth with a 65,536 gray scale for each R, G, B.
High Contrast Rate and Automatical Brightness Control
4000:1 contrast rate, and 256-grade automatical brightness control
Leeman PH1.667 Indoor Full Color HD LED Panel Specification
| Item | Technical Parameters |
|---|---|
| Nationstar REESTAR Full black Gold Wire SMD GOB LED Chip Parameters | |
| Item Name | LED Type |
| Red LED | SMD1515 / SMD 1010 / SMD0808 |
| Green LED | SMD1515 / SMD 1010 / SMD0808 |
| Blue LED | SMD1515 / SMD 1010 / SMD0808 |
| LEEMAN LED DISPLAY Module Specification | |
| Pixel Pitch | LeemanLED-P1.667mm |
| Pixels Density | 360,000 pixels/m2 |
| LED Configuration | Nationstar SMD RGB 3in1 |
| Package Mode | GOB SMD1515 / SMD 1010 / SMD0808 |
| Module Size | 200mm X 150mm |
| Module Resolution | 120 x 90 pixels |
| Module Pixles | 10,800 pixels |
| Max Power Consumpion | 50W |
| Module Thickness | 18mm |
| PCB Board | 4 Layer PCB Board With 1.6mm |
| Driving IC | MBI5153 or ICN2153 |
| Drive Type | Constant drive |
| Driving Method Scan Mode | 1/30 scan |
| Port Interface Type | HUB75 |
| Module Input Voltage | DC5V |
| Brightness of White Balance | ≥1000cd/㎡ |
| LEEMAN LED DISPLAY Cabinet Specification | |
| Cabinet Size(W X H X D) | 400mm x 300mm x 70mm and 600mm x 337.5mm x 70mm |
| Cabinet Resolution(dot) | 240 x 180 pixels |
| Cabinet Ratio | 4 : 3 or 16 : 9 |
| Module Quanity (pcs) | 4pcs |
| Cabinet Pixels | 43200 pixels |
| Pixel Density | 360,000 pixels/m2 |
| Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose |
| Cabinet Weight | 3kg per cabinet |
| Whole LEEMAN LED DISPLAY Screen Specification | |
| Screen Brightness | ≥1000cd/m2 |
| Driving Method | 1/30 scan |
| Best Viewing Distance | 1m - 50m |
| Max. Power Consumption | 600W/m2 |
| Average Power Consumption | 350W/m2 |
| Gray Level | 16bits input, 4096 levels |
| Display Color | 256M |
| Frame Frequency | ≥60Hz |
| Refresh Frequency | ≥3840Hz - 6420Hz |
| Uninterrupted Working Hours | ≥72 hours |
| Screen Life-span | ≥100,000 hours |
| MTBF | ≥10,000 hours |
| Discrete Blind Spot Rate | <1/20000 |
| Continuous Blind Spot Rate | None |
| Blind Spot Rate | <1/10000 |
| Protective Scale | For indoor use only |
| Screen Plainness | <±1mm |
| Power Supply Mode | AC220±10% 50Hz / AC110±10% 60Hz |
| Environment Temperature & Humidity | Temperature:-35 Celsius~+60 Celsius |
| Humidity:10%~90% RH | |
| Control Mode | Synchronous display with control PC by DVI |
| Control System | DVI video card + full color control card + fiber system(optional) |
| Display Content | HDMI, VGA, Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| Interface | Standard Ethernet |
| Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
| Control System | Linsn LED, Novastar LED, Colorlight LED or as you required |
| Power Supply Brand | G-energy, MeanWell, Chuanglian or as you required |
| Certificate | UL, EMC, CE, ROHS, FCC |
