P1.667 LED Display Small Pixel Pitch LED Display HD P1.667 Ultra Small LED Screen TV

P1.667 LED Display Small Pixel Pitch High definition P1.667mm 400x300mm Front Maintenance Small Pixel LED Display with front service available, High Flatness, High quality, High Reliability, High Refresh Rate 3840hz and 4:3 Golden Ratio P1.667 HD LED screen LED Video Wall. Specially designed for small pixel pitch LED display applications. Each 400×300mm P1.667mm narrow pixel Indoor LED sign cabinet consits of 240 pixel in horizontal and 180 pixel in Vertical, and consits of 43200 pixels in total.
Product Description: P1.667 LED Display Small Pitch LED Display

Description

P1.667 LED Display Small Pixel Pitch LED Display HD P1.667 Ultra Small LED Screen TV

High definition P1.667mm 400x300mm Front Maintenance Small Pixel LED Display with front service available, High Flatness, High quality, High Reliability, High Refresh Rate 3840hz and 4:3 Golden Ratio P1.667 HD led screen LED Video Wall. Specially designed for small pixel pitch LED display applications.

High Definition LED Display
Delivers truly amazing picture in every detail with extraordinary pixels producing an image that is HD quality in an LED screen

Narrow Pixel Pitch
P1.56/P1.66/P1.923 narrow pixel pitch HD LED Screen Max 225pixel per square inch

Ultra-wide viewing angle
160° viewing angle from both vertical and horizontal direction

Natural Color
16bits color depth with a 65,536 gray scale for each R, G, B.

High Contrast Rate and Automatical Brightness Control
4000:1 contrast rate, and 256-grade automatical brightness control

HD P1.667 Ultra Small LED Screen TV Specifications

ItemTechnical Parameters
Nationstar REESTAR Full black Gold Wire SMD GOB LED Chip Parameters
Item NameLED Type
Red LEDSMD1515 / SMD 1010 / SMD0808
Green LEDSMD1515 / SMD 1010 / SMD0808
Blue LEDSMD1515 / SMD 1010 / SMD0808
LEEMAN LED DISPLAY Module Specification
Pixel PitchLeemanLED-P1.667mm
Pixels Density360,000 pixels/m2
LED ConfigurationNationstar SMD RGB 3in1
Package ModeGOB SMD1515 / SMD 1010 / SMD0808
Module Size200mm X 150mm
Module Resolution120 x 90 pixels
Module Pixles10,800 pixels
Max Power Consumpion50W
Module Thickness18mm
PCB Board4 Layer PCB Board With 1.6mm
Driving ICMBI5153 or ICN2153
Drive TypeConstant drive
Driving Method Scan Mode1/30 scan
Port Interface Type HUB75
Module Input VoltageDC5V
Brightness of White Balance≥1000cd/㎡
LEEMAN LED DISPLAY Cabinet Specification
Cabinet Size(W X H X D)400mm x 300mm x 70mm and 600mm x 337.5mm x 70mm
Cabinet Resolution(dot)240 x 180 pixels
Cabinet Ratio4 : 3 or 16 : 9
Module Quanity (pcs)4pcs
Cabinet Pixels43200 pixels
Pixel Density360,000 pixels/m2
Cabinet MaterialsDie Casting Aluminum Cabinet for rental purpose
Cabinet Weight3kg per cabinet
Whole LEEMAN LED DISPLAY Screen Specification
Screen Brightness≥1000cd/m2
Driving Method1/30 scan
Best Viewing Distance1m - 50m
Max. Power Consumption600W/m2
Average Power Consumption350W/m2
Gray Level16bits input, 4096 levels
Display Color256M
Frame Frequency≥60Hz
Refresh Frequency≥3840Hz - 6420Hz
Uninterrupted Working Hours≥72 hours
Screen Life-span≥100,000 hours
MTBF≥10,000 hours
Discrete Blind Spot Rate<1/20000
Continuous Blind Spot RateNone
Blind Spot Rate<1/10000
Protective ScaleFor indoor use only
Screen Plainness<±1mm
Power Supply ModeAC220±10% 50Hz / AC110±10% 60Hz
Environment Temperature & HumidityTemperature:-35 Celsius~+60 Celsius
Humidity:10%~90% RH
Control ModeSynchronous display with control PC by DVI
Control SystemDVI video card + full color control card + fiber system(optional)
Display ContentHDMI, VGA, Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
InterfaceStandard Ethernet
Transmission DistanceMulti mode fiber <500m, single mode fiber <30km,internet cable <100m
Control SystemLinsn LED, Novastar LED, Colorlight LED or as you required
Power Supply BrandG-energy, MeanWell, Chuanglian or as you required
CertificateUL, EMC, CE, ROHS, FCC

P1.667 LED Display Small Pixel Pitch P1.667 Ultra Small Pixel 4k RGB Full Color LED Module

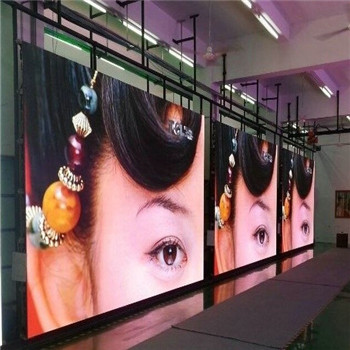

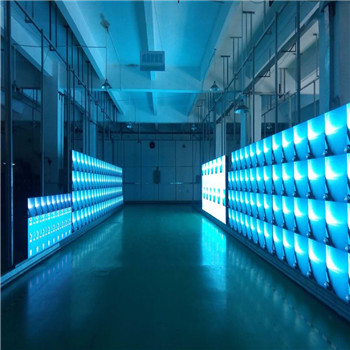

Leeman LED Display manufacturers factory workshop How to use Leeman LED Display connection How to program Leeman LED Display with linsn control system Leeman led display flying case or flight case packaging
