500x500mm/500x1000mm cabinet size indoor fixed LED display P3.91mm pixel pitch
1. Low brightness high gray scale.
2. Adopts SMD technology provide wide viewing angle, excellent flatness and stability.
3. Quick and accurate installation location type, suitable for many different installation places.
4. Support point-to-point correction function to ensure the high consistency color and brightness.
Product Description: P3.91 Front Access LED Wall Panel Outdoor Rental LED Wall – P3.91 Outdoor Rental LED Wall
P3.91 Indoor led Video Wall Screen
Description
P3.91 Indoor led Video Wall Screen P3.91 Indoor SMD Full Color LED Display Module, P2.98/P3.91/P4.81/P6.25 Indoor Rental LED Screen/Display With 500X1000 Rental Aluminum Die-Casting Led Panel
500x1000mm big panel,speedily and easily mounting, perfect 16:9 colorful image.
Ultra thin body, die-casting aluminum structure, high-accuracy connection, error<0.1mm.
Natural aluminum heat conduction design(no-cooling fan),quiet world.
HQ-image.Good consistency / No particle and mosaic phenomenon.
Muti-layer circuit PCB, uniform current distribution, low power consumption, fast heat dissipation, prolong the life of the screen.
Tool-free locking system.

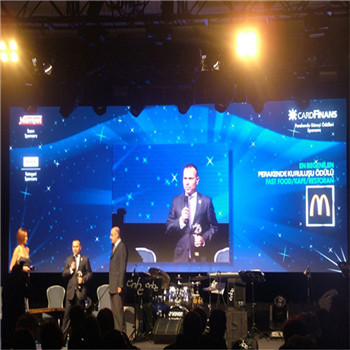

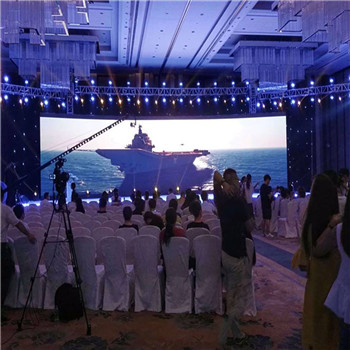

Indoor P3.91 LED display panels is designed for indoor rental and semi-permanent installations.
Leeman display panels are built in the 500x500mm size for easy handling and safety. It’s lightweight die-cast aluminum frame and easy to use reliable locking system ensures quick seamless installations. It comes with positioning pins and ergonomic handles to further improve work efficiency and user-friendliness.
Its high ingress protection rating of IP30 makes it suitable for most indoor applications and rental projects.
Rear maintenance comes standard on W series panels. However, optional front maintenance configuration is available to make these display cabinet more versatile for various rental applications.
For vertical installations either via hanging bar or stacked on the floor the high strength die cast aluminum frame can cope with up to 10 meters height which is plenty for most large sized events.
Leeman Display brings your audience and clients a pleasing visual experience with NationStar Gold 3 in 1 SMD 2020 LEDs. It offers a wide viewing angle of 160° horizontal and 140° vertical. Seamless bezel-free design, pixel by pixel calibration for optimized color rendering, uniformity and brightness also add to its appeal. The brightness of 800-1100nits and refresh rate of 1920Hz is the standard configuration. However, 3840Hz refresh rate options are also available for the most demanding clients by upgrading driver ICs.
P3.91 Indoor led Video Wall Screen Specifications
Item Technical Parameters
Nationstar SMD Full black Gold Wire LED Lamp Parameters
Item Name LED Type
Red LED SMD 2020
Green LED SMD 2020
Blue LED SMD 2020
LEEMAN LED Display Module Specification
Pixel Pitch LeemanLED-P3.91mm
Pixels Density 65,536 pixels/m2
LED Configuration Nationstar SMD RGB 3in1
Package Mode SMD2020
Module Size 250mm X 250mm
Module Resolution 64 x 64 pixels
Module Pixles 4096 pixels
Max Power Consumpion 35W
Module Thickness 20mm
PCB Board 4 Layer PCB Board With 1.6mm
Driving IC MBI5153 or ICN2153
Drive Type Constant drive
Driving Method Scan Mode Dynamic 1/16 Duty constant current
Port Interface Type HUB75
Module Input Voltage DC 5V
Brightness of White Balance ≥2000cd/㎡
Module Mask Pure Black mask-high contrast screen
LEEMAN LED Display Cabinet Specification
Cabinet Size (W X H X D) 500mm x 1000mm x 85mm or 500mm x 500mm x 85mm
Cabinet Resolution (dot) 128 x 256 pixels or 128 x 128 pixels
Module Quanity (pcs) 8pcs or 4pcs
Cabinet Pixels 32768 pixels
Pixel Density 65410 pixels/m2
Cabinet Materials Die Casting Aluminum Cabinet for rental purpose
Cabinet Weight 10kg or 5kg per cabinet
Packaging Fly case
Whole LEEMAN LED Display Screen Specification
Screen Brightness ≥2000cd/m2
Driving Method Constant current
Best Viewing Distance 3m - 80m
Max. Power Consumption 800W/m2
Average Power Consumption 400W/m2
Gray Level 16bits input, 4096 levels
Display Color 256M
Frame Frequency ≥60Hz
Refresh Frequency ≥3840Hz - 6420Hz
Uninterrupted Working Hours ≥72 hours
Screen Life-span ≥100,000 hours
MTBF ≥10,000 hours
Discrete Blind Spot Rate <1/10000
Continuous Blind Spot Rate None
Blind Spot Rate <1/10000
Protective Scale For indoor use, non-waterproof
Screen Plainness <±1mm
Power Supply Mode AC220±10% 50Hz/AC110±10% 60Hz
Environment Temperature Temperature:-20 Celsius~+60 Celsius
Humidity Humidity:10%~90% RH
Control Mode Synchronous display with control PC by DVI
Control System Linsn LED, Novastar LED, Colorlight LED or as you required
Display Content HDMI ,DVI, VGA, Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
Interface Standard Ethernet
Transmission Distance Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
Power Supply Brand G-energy, MeanWell, Chuanglian or as you required
Certificate CE, RoHS, FCC, UL, EMC
