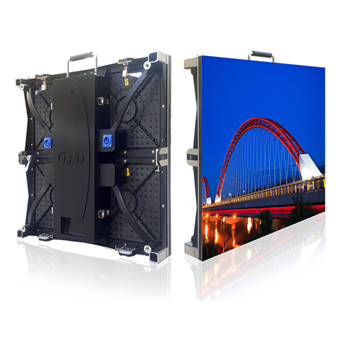

P4.81/P3.91mm Outdoor Front Repair LED Display/Screen With Ultra Light Weight And Ultra Die-Casting Magnesium Rental LED Panel And Magnetic Suction LED Module
250x250mm water proof magnetic suction LED module P4.81/P3.91 Outdoor front serving / front maintenance / front open / front service access / front repair rental led display/screen. Ultra light weight and ultra die-casting magnesium rental led panel High brightness levels for exceptional picture
Product Description: Indoor P4.81 Full Color Front Maintenance Rental LED Display Billboard
P4.81 indoor Front Serving Rental LED Display 500x500mm
Description
P4.81 indoor Front Serving Rental LED Display 500x500mm Outdoor Front Serving Rental LED Display/Screen with Light Weight Die-casting Aluminum Cabinet for Events and Stages. 500X500mm die- casting aluminum cabinet.
Ultra light weight and ultra die-casting magnesium rental led panel
High brightness levels for exceptional picture quality in direct sunlight.
IP54 IP65 rating makes the panels fully weather proof to the very worst weather conditions.
LED display with hanging beam can be hanged on aluminum truss for events and rental business conveniently.
It is providing solutions for events led screen, convert led panel, stages led video wall, shows led display, TV stations led boards, night club led screen, sports led display.
LIGHTWEIGHT AND THIN
Magnesium alloy P4.81mm Rental Indoor led screen cabinet is very thin which makes it ultra-lightweight and space saving. It can be installed at any area without requiring much space.the weigth of cabinet is only 7.5kg/panel for easy to carry, portable, transport and install, saving good amount of money on your labor costs.
PERFECT STRUCTURE
The cabinet is perfect with top grade design and layout from fast lock, top handle, side handle, module handel, data connector, power connector, control box, indicator, locating pin,also cabinet can offer branding OEM on the back cover.
FULL FRONT MAINTENANCE
P4.81mm Magnesium Alloy Indoor Rental LED Screen can be maintenanced from the front side. 100% frontal accessable feature make the LED display is very convenient to assable and disassamble, the module is magnetic and is easy to take out in a few seconds, save much time and labor.
CURVED INSTALLATION
Magnesium alloy P4.81 indoor LED display is designed to support curved installation to meet various display applications and environments. Curved design with every 2.5° between -10°and 10° to make the LED display can be installed with many shapes like circle, arc, curve, and more.
SEAMLESS SPLICING
Indoor Magnesium alloy P4.81mm Rental LED screen support mixed installation with 500×500mm cabinet and 500×1000mm cabinet. Easy splicing with fast lock design. Ultra flatness without no gap. The display offer a excellent visual experience with vivid image and video.
P4.81mm 500mmx1000mm Indoor rental led display With Rear & Front Service.Easy Maintanence and Easy Installation Specifications Parameters:
Item | Technical Parameters |
---|---|
Nationstar SMD Full black Gold Wire LED Lamp Parameters | |
Item Name | LED Type |
Red LED | SMD 2020 |
Green LED | SMD 2020 |
Blue LED | SMD 2020 |
LEEMAN LED Display Module Specification | |
Pixel Pitch | LeemanLED-P3.91mm |
Pixels Density | 65,536 pixels/m2 |
LED Configuration | Nationstar SMD RGB 3in1 |
Package Mode | SMD2020 |
Module Size | 250mm X 250mm |
Module Resolution | 64 x 64 pixels |
Module Pixles | 4096 pixels |
Max Power Consumpion | 35W |
Module Thickness | 20mm |
PCB Board | 4 Layer PCB Board With 1.6mm |
Driving IC | MBI5153 or ICN2153 |
Drive Type | Constant drive |
Driving Method Scan Mode | Dynamic 1/16 Duty constant current |
Port Interface Type | HUB75 |
Module Input Voltage | DC 5V |
Brightness of White Balance | ≥2000cd/㎡ |
Module Mask | Pure Black mask-high contrast screen |
LEEMAN LED Display Cabinet Specification | |
Cabinet Size (W X H X D) | 500mm x 1000mm x 85mm or 500mm x 500mm x 85mm |
Cabinet Resolution (dot) | 128 x 256 pixels or 128 x 128 pixels |
Module Quanity (pcs) | 8pcs or 4pcs |
Cabinet Pixels | 32768 pixels |
Pixel Density | 65410 pixels/m2 |
Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose |
Cabinet Weight | 10kg or 5kg per cabinet |
Packaging | Fly case |
Whole LEEMAN LED Display Screen Specification | |
Screen Brightness | ≥2000cd/m2 |
Driving Method | Constant current |
Best Viewing Distance | 3m - 80m |
Max. Power Consumption | 800W/m2 |
Average Power Consumption | 400W/m2 |
Gray Level | 16bits input, 4096 levels |
Display Color | 256M |
Frame Frequency | ≥60Hz |
Refresh Frequency | ≥3840Hz - 6420Hz |
Uninterrupted Working Hours | ≥72 hours |
Screen Life-span | ≥100,000 hours |
MTBF | ≥10,000 hours |
Discrete Blind Spot Rate | <1/10000 |
Continuous Blind Spot Rate | None |
Blind Spot Rate | <1/10000 |
Protective Scale | For indoor use, non-waterproof |
Screen Plainness | <±1mm |
Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
Environment Temperature | Temperature:-20 Celsius~+60 Celsius |
Humidity | Humidity:10%~90% RH |
Control Mode | Synchronous display with control PC by DVI |
Control System | Linsn LED, Novastar LED, Colorlight LED or as you required |
Display Content | HDMI ,DVI, VGA, Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
Interface | Standard Ethernet |
Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
Power Supply Brand | G-energy, MeanWell, Chuanglian or as you required |
Certificate | CE, RoHS, FCC, UL, EMC |
