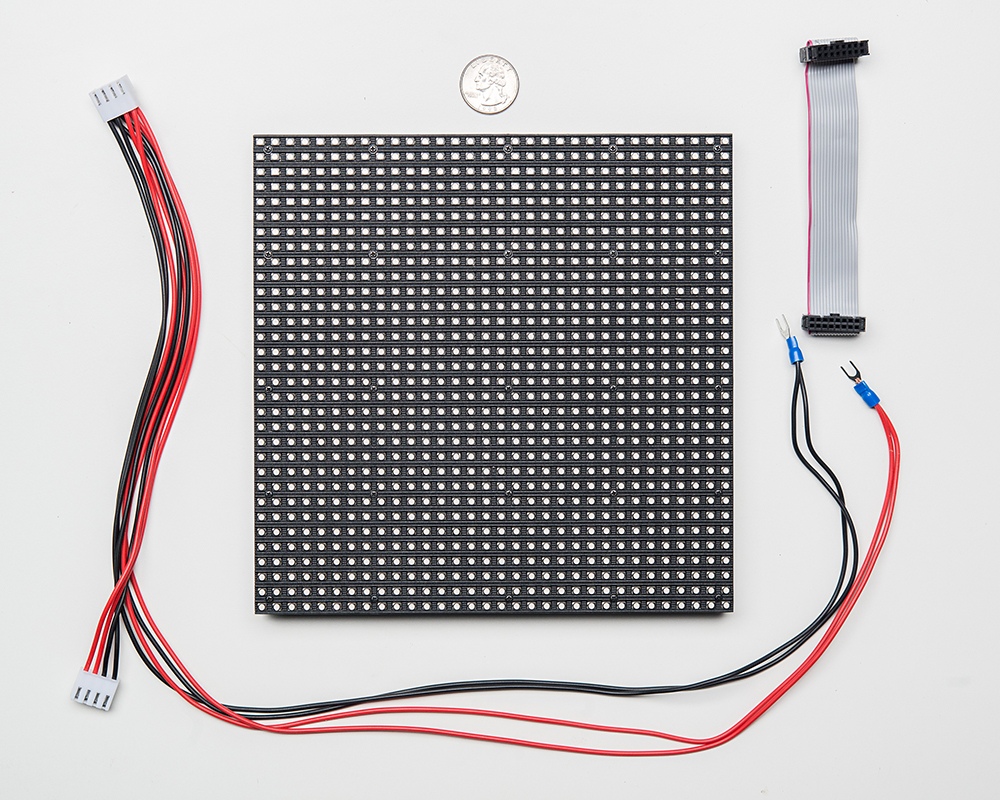

P6 LED Module Display Panel Indoor 32*32 Pixels Smd3528 RGB Full Color
Leeman LED Module size 192X192mm
Panel resolution 32X32 pixels
Driving method 1/16 scan
Nationstar SMD3528 RGB full color
Product Description: P6 Indoor LED Module 192×192 Display Panel 32*32 Pixels Smd3528 RGB Full Color
P6 LED Module Display Panel Indoor 32*32 Pixels Smd3528 RGB Full Color
Description
P6 LED Module Display Panel Indoor 32*32 Pixels Smd3528 RGB Full Color P6 SMD Full Color LED Module 192×192 P6 RGB 3in1 SMD3528 LED Module Full Color 1/16scan Leeman P6(3528-32×32-16S-HL1.1) LED Module 192×192 P6 Led Panel Display Panel SMD3528 3in1 Indoor HD 32*32 Pixels RGB Full Color
Pixel pitch: 6mm
Module Size: 192X192 mm
Model Pixel: 32X32 Pixels
lattice density: 27777 dots/square meter
Pixel form: 1R1PG1GB SMD3528
Max power consumption: 15 watt
Power supply voltage: 5 Volt DC
Interface HUB75 Board
Indoor /Outdoor rental led display screen p3,p4,p5,p6,p8,p10 smd, LED panel video Leeman LED P3 P6 RGB LED Module 192×192 Full Color SMD LED Matrix Panel
Leeman LED DISPLAY Product Description:
1. Made with aluminum alloy with very light weight
2. Super thin cabinet size ,only 60mm thickness
3. Rental design, easy to install and dismantle without any tools
4. Seamless splicing,good heat dissipation,Low noise
5. High brightness, good display performance and cost performance
6. Wide view angle,good heat dissipation
7. 2 years quality warranty, according to the international standard of FCC,CE,RoHS, etc.
8. Packed with flight case or wooden case as required
9. Widely used in public advertising, shopping mall, theatre, live show, live meeting, banquet, stage background etc.
Leeman P6(3528-32×32-16S-HL1.1) LED Module 192×192 Indoor led panel 192X192 full color 32X32 pixels 1/16 scan SMD3528 RGB full color p6 led module for indoor led screen High quality LED panel video wall
LeemanLED Module PCB versions for RCG Files Download list:
| p2.5-2121-32s-6464-.RCG | p6-3258-16s-3232-MBI5124.RCG |
| p3.91-16s-6464-20 data for RV907.RCG | p6-3258-16s-3232-MBI5124-HL.RCG |
| p3.91-16s-6464-a3.RCG | p6-3525-8s-4848-MBI5124.RCG |
| p3.91-16s-6464-HUB75B.RCG | p6-3528-8s-3216-a1.RCG |
| p3.91-16s-6464-HUB75B-MBI5124.RCG | p6-3528-8s-3232-B2.RCG |
| p3-2121-16s-6432.RCG | P7.62-8s-3216-b.RCG |
| p3-2121-16s-6432-MBI5124.RCG | P7.62-8s-3216-MBI5151.RCG |
| p3-2121-32s-6432.RCG | p7.62-8s-3232-HL-MBI5124.RCG |
| p3-2121-32s-6432-bo.RCG | p7.62-3528-8s-3232-A2.RCG |
| p3-2121-32s-6464-bo.RCG | p7.62-3528-8s-3232-A3.RCG |
| p3-2121-32s-6464-E signal.RCG | p7.62-3528-8s-3232-MBI5124.RCG |
| p3-2121-32s-6464-E signal-MBI5124.RCG | p7.62-3528-16s-6432-double color.RCG |
| p3-2121-32s-6464-E signal-MBI5153.RCG | p10-3528-8s-3216-AO.RCG |
| p3-2121-32s-6464-E signal-MY9868.RCG | s5-3535-8s-3232.RCG |
| P4.8-15s-6060-MBI5124.RCG | s6-3535-4s-3232-A1.RCG |
| p4.75-3528-16s-6432-double color.RCG | s6-3535-4s-3232-A1-MBI5214.RCG |
| p4.75-3528-16s-6432-single color.RCG | s6-3535-8s-3232-14D-W-MBI5124.RCG |
| p4.81-2121-13s-5252-A3-MY9868.RCG | s6-3535-8s-3232-a5.RCG |
| p4.81-2121-13s-MBI5252.RCG | s6-3535-8s-3232-A5-MBI5043.RCG |
| p4-2121-8s-6432-AO.RCG | s6-3535-8s-3232-a5-MBI5124.RCG |
| p4-2121-16s-6432-MBI5124.RCG | s6-3535-8s-3232-A5-MY9868.RCG |
| p5-2121-16s-3232.RCG | S8-3535-4s-3216-a4.RCG |
| p5-2121-16s-6432-a3.RCG | S8-3535-4S-3216-A4-MY5124.RCG |
| p5-3258-8s-3232.RCG | S10-3535-2s-1616-.RCG |
| p5-3258-8s-3232-HL.RCG | S10-3535-2s-1616-xg-MBI5124.RCG |
| p5-3258-16s-3232-MBI5124.RCG | s10-3535-2s-3216-A1.RCG |
| p5-3258-16s-6432-MBI5124.RCG | s10-3535-2s-3216-AO.RCG |
| p6-2121-16s-3232.RCG | s10-3535-2s-3216-MBI5124.RCG |
| p6-3258-8s-3216-.RCG | s10-3535-4s-3216-4538.RCG |
| p6-3258-8s-3216-HL.RCG | s10-3535-4s-3216-a3.RCG |
| p6-3258-8s-3232.RCG |
LED Module PCB versions for RCG Files download list 2:
| CH-P5-3232-RGB-16S V8.RCG | P4-64X32-16S-DC-A1.RCG |
| KSL-6464-P3-32S-5153.RCG | P4-64×32-V3.0-Division by 3.RCG |
| KSL-6464-V1.1-P3-32S.RCG | P4-6432-2020-16S-A5.RCG |
| Outdoor P6-32X32-8S-L6-V1.1.RCG | P4-SSJN04-01AF20-6432M-16S-V1.2-HX.RCG |
| outdoor P10-1-4-3535-4538-32+16-V2.5(2P704R).RCG | P5(2121)32+64-16S-V1.0.RCG |
| outdoor P10-4S-3535MX-JUJ.RCG | P5(2623)-32+32-8S-A5.RCG |
| outdoor P10-4S-KSL.RCG | P5-8S-L5-D-2727-KSL-8S-V1.0.RCG |
| P1.932-26S.RCG | P5-16S 2P718R-HL.RCG |
| P2.5(2020)-64+64-32S-75-14A.RCG | P5-16S-6432-B0-HL.RCG |
| P2.5.595-32S 64+64V1.1L.RCG | P5-2121-64X32-V3.0.RCG |
| P2.5-32S-64X64-2012+2038.RCG | P5-2121-V3.0.RCG |
| P2.5-32S-general IC.RCG | P5-2727-32X32-8S-A4-DCHY.RCG |
| P2.5-64+32-16S-V1.01.RCG | P5-3528-32X32-8S-A1.0.RCG |
| P2-64X64-1515-32S-2012-V1.1.RCG | P5-6432-2020-16S-A0 2P840R-HL 1521.1.2T updated.RCG |
| P3(2121)32+64-16S-V3.2.RCG | P5-6432-2020-16S-A0 2P840R-HL 1521.1.2T.RCG |
| P3(2121)32+64-16S-V3.4 updated.RCG | P5-6432-3528-16S 2P634R-HL-1.2T.RCG |
| P3(2121)32+64-16S-V3.4.RCG | P6 outdoor-32+32 green.RCG |
| P3(2121)64+32_16S-V2.RCG | p6.25-10s-1500Hz refresh rate.RCG |
| P3.0(2020)32_64_16S-V2.4.RCG | P6_8S_32+16(2P023A).RCG |
| P3.91-64-64-16S.RCG | P6-8S outdoor.RCG |
| P3.91-500X500 Division by 2.RCG | P6-8S outdoor-32X32-V1.5-HL.RCG |
| P3.91-500X500 Division by 2-2.RCG | P6-16S-32X32-2P1126A.RCG |
| P3.91-500×500-Division by 2(1234).RCG | P6-32+32-V1.RCG |
| P3.91-500×500-Division by 2-HL1234.RCG | P6-32+32-V1-8S-MX-HL.RCG |
| P3.91-500X500-Division by 2-MBI5124.RCG | p6-32×32-16S-2P437B.RCG |
| P3.91-500X500-Division by 2-MBI5124-KSL.RCG | P6-6432-3528-16S-A1(2P713A).RCG |
| P3.91-500X1000-Division by 2-left5678-right1234.RCG | P7.62-16S-V1.RCG |
| P3.91-V1.1KSL1550.RCG | P7.62-16S-V1-HX(2013-11-12).RCG |
| P3-32S-64X64-2012+2038.RCG | P7.62-32+32-A-HX.RCG |
| P3-32S-64X64-V2.0.RCG | P7.62-3528-32X16-4S-V1.0.RCG |
| P3-32S-64X64-V5.RCG | P8-4S-KSL-4538-MX.RCG |
| P3-32S192X192.RCG | P8-32+16-4S L8-V2.0.RCG |
| P3-32S-192X192XSY.RCG | P10-2S-32X16-MX-NEW.RCG |
| P3-32S-Division by 3-left 9-12.RCG | P10-4S-3216-A0.RCG |
| P3-32S-KSL general IC.RCG | P10-8S-32X16-VER1.2-2P824R.RCG |
| P3-64X32-16S-D1.0.RCG | P10-8S-HX(2P408A).RCG |
| P4-(2121)-16S-6432-BO.RCG | P10-3535-2S-MX-833.RCG |
| P4.81-13S.RCG | P10-FL-SC-1-4-DRIVER(outdoor DIP 4 scan）.RCG |
| P4.81-500X1000.RCG | PH5-16S-E5(E357306).RCG |
| P4.81-Division by 2.RCG | PH6_16S-32+32(2P437B).RCG |
| p4-8s 128×128.RCG | PH6-16S-32+32(2P437B).RCG |
| P4-32+32-2020-16S V2.0.RCG | PH7.62-32+32-8S-A(2P619A).RCG |
| P4-64+32-16S(2P417A).RCG | PH8-3535-4S-V1.0.RCG |
| P4-64+32-16S-A6.RCG | PH10_3535-S2-RGB_V1.0.RCG |
| P4-64+32-16S-V2.0(2P682A).RCG | PH10RGB-4S-32+16 MX-245A.RCG |
| P4-64X32 2P683c.RCG |
LED Module PCB versions for RCG Files download list 3:
| P1.9-128×64-1920Hz-0114.RCG | P10-2S-32×16-outdoor SMD.rcg |
| p1.875.RCG | p10-4S-16×16-1818.RCG |
| p2.5-16S-64X64.RCG | p10-4S-16×16-HUB75-4538.RCG |
| P2.5-16S-138.RCG | P10-4S-32×16-combined driver board-533.RCG |
| p2.5-32S-64X64.RCG | p10-4S-32×16-outdoor.RCG |
| P2.5-32S-595.RCG | P10-4S-32×16-separate driver board-1828.RCG |
| P3-32S-64×64-5958.RCG | p10-4×32-circle screen-HUB97.RCG |
| p3-64X32-16S.RCG | p10-8S-32×16-combined driver.RCG |
| P4-16S-64×32.RCG | p10-8S-32×16-combined driver-1388.RCG |
| P4-16S-64×32-7258.RCG | p10-16×16-MBI5041B.RCG |
| p5-16S-64X32.RCG | P10-32×16-HUB12-double color.rcg |
| p5-16S-64X32-general IC.RCG | p10-32×16-single color-constant current.RCG |
| p6-4S-outdoor-HUB08-2 driver boards.RCG | P10-32×16-single color-constant voltage.rcg |
| P6-8S-32×2-outdoor.RCG | p10-HUB08-high refresh.RCG |
| p6-16S-64X32.RCG | P13.33-6S.RCG |
| P6-32×32.RCG | P13.33-6S-24×12.RCG |
| P8-4S-32×16.RCG | P16-2RGB-4S-20×10.RCG |
| P8-4S-32×16-HUB75.rcg | P16-RGB-1S-16×16- 898b.rcg |
| P8-4S-32×162-outdoor.RCG | P16-RGB-1S-16×16-bg898a.rcg |
| P8-4S-HUB08-2918.RCG | P16-RGB-256×256-898b.rcg |
| P8-8S-MBI5052.RCG | P20-2R1G1B-6×8.RCG |
| p8-40×20-HUB75.RCG |
LED Module PCB versions for RCG Files download list 4:
| outdoor P6-8S.RCG | P5-16S-new.RCG |
| outdoor-P10-4S.RCG | P5-16S-SMD2121.RCG |
| P2.5-16S.RCG | P6.25-10S.RCG |
| P2.5-16S-new.RCG | P6.67-6S.-outdoor.RCG |
| p2.5-24S.RCG | P6-4S-new.RCG |
| P2.5-32S.RCG | P6-8S-big module.RCG |
| P2-24S.RCG | P6-8S-small module.RCG |
| p3.91-16s.RCG | P6-16S-192x192mm.RCG |
| P3-16S-RGB.RCG | P6-16S-384x192mm.RCG |
| p4.81-13s.RCG | P7.62-8S-244×122.RCG |
| P4-16S-32×32-GBR.RCG | P7.62-8S-244×244.RCG |
| P4-16S192X384.RCG | P7.62-16S.RCG |
| P4-16S-GBR.RCG | p8-4S-outdoor.RCG |
| P4-24S.RCG | P8-5S-outdoor.RCG |
| P4-64×64.RCG | P10-2S-outdoor.RCG |
| P5-8S.RCG | P10-4S.RCG |
| p5-8s-4848.RCG | p10-4s-outdoor DIP RGB.RCG |
| P5-16S.RCG | P10-8S.RCG |
| P5-16S-HUB08.RCG | P12-outdoor.RCG |
LED Module PCB versions for RCG Files download list 5:
| 3.75-64×32-double color.RCG | p5-64×32-HUB75.RCG |
| P2.5-HUB32A-IC2038.RCG | p6-64×32-HUB75.RCG |
| P2.5-MBI5153-3720Hz.RCG | p8-32×16-HUB75.RCG |
| p3-64×32-HUB75.RCG | p10-16×16-HUB75.RCG |
| P3-hub22-IC2038 .RCG | p10-32×16-HUB75.RCG |
| p4-64×32-HUB75.RCG |
LED Module PCB versions for RCG Files download list 6:
| P2.5-16P.RCG | P6-MBI5041.RCG |
| P2.5-595IC.RCG | P6-outdoor-5055.RCG |
| p2.5-2012.RCG | P6-outdoor-5055IC.RCG |
| P3.91.RCG | P6-outdoor-blue PCB.RCG |
| p3.91-16S.RCG | P6-outdoor-green PCB.RCG |
| p3.91-division by 2.RCG | P6-outdoor-yellow PCB.RCG |
| p3.RCG | P7.62-8S.RCG |
| P3-32s .RCG | P8.RCG |
| P3-32S-5958 .RCG | P8-8S-outdoor.RCG |
| P4.81-13s.RCG | p8-outdoor DIP.RCG |
| P4-16s.RCG | p8-outdoor.RCG |
| p4-MBI5153.RCG | p10-indoor-8S.RCG |
| p5-division by 2-2-6.RCG | p10-outdoor DIP.RCG |
| P6-8S. 4-11-.RCG | P10-outdoor.RCG |
| P6-8S.RCG |
