Platinum Series Aluminum Outdoor LED Display Screen DOOH Solution IP68 Platinum Aluminum Outdoor Fixed LED Display Screen 500X1000 P1.953 P2.604 P2.976 P3.91 P4.81 P6.25 P7.81 P8.33 P10.41 Outdoor Aluminum LED Screen 1000×1000 High brightness 5500nits-10000nits
Original price was: $250.00.$200.00Current price is: $200.00.
P1.5 P1.9 P2.6 P2.9 P3.9 P4.8 P5.7 P6.67 P8 P10 Diamond Series Platinum Series DOOH Solution 500×500/500×750/500×1000/960×1280/960×960/1440×960/960×640/1440×640 aluminum cabinet IP66 Outdoor LED screen
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles
IP66 Waterproof
High Flexibility
Common Cathode Design
Front Rear Maintenance

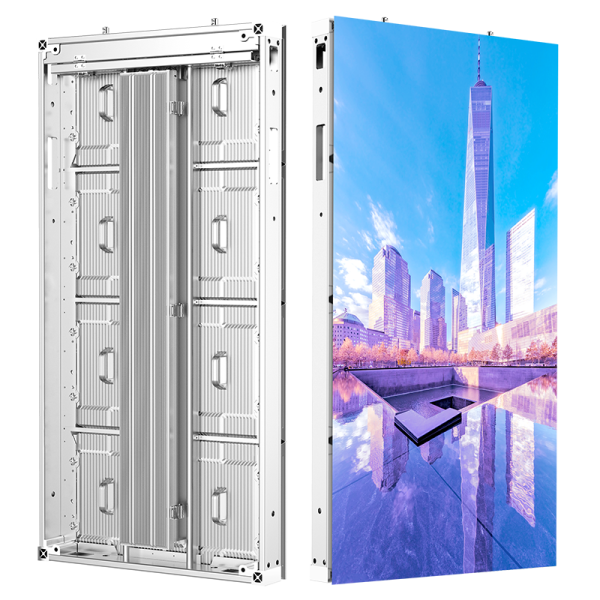

Die Cast Aluminum
7000cd High brightness
Advantages
Feature Description
- – High brightness and super energy saving
- – Ultra-light and ultra-thin
- – Simple structure, full wireless, hard link, front and rear maintenance
- – Good heat dissipation, no need for air conditioning
- – 5VB fireproof and approved by TUV
- – Modular aluminum bottom shell, flame retardant and fireproof, waterproof grade IP66
Video
Diamond Series Outdoor Fixed LED Display Screen DOOH Solution Dimension: 500*500*65mm and 500*1000*65mm Parameters

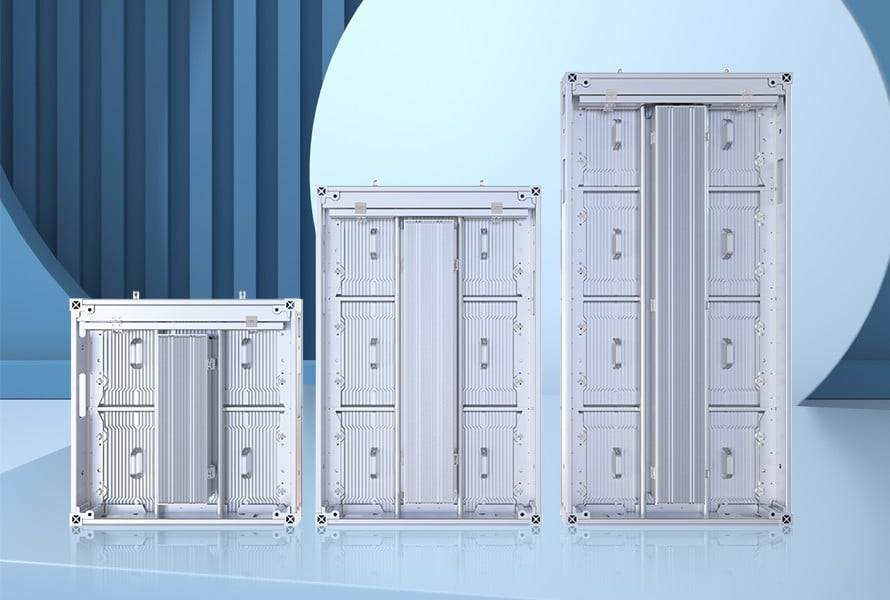

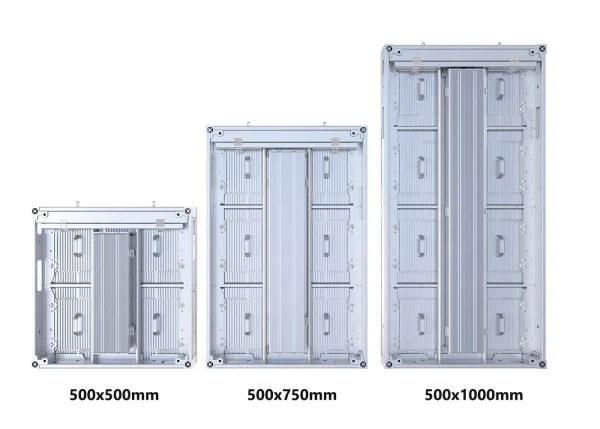

Flexible Size

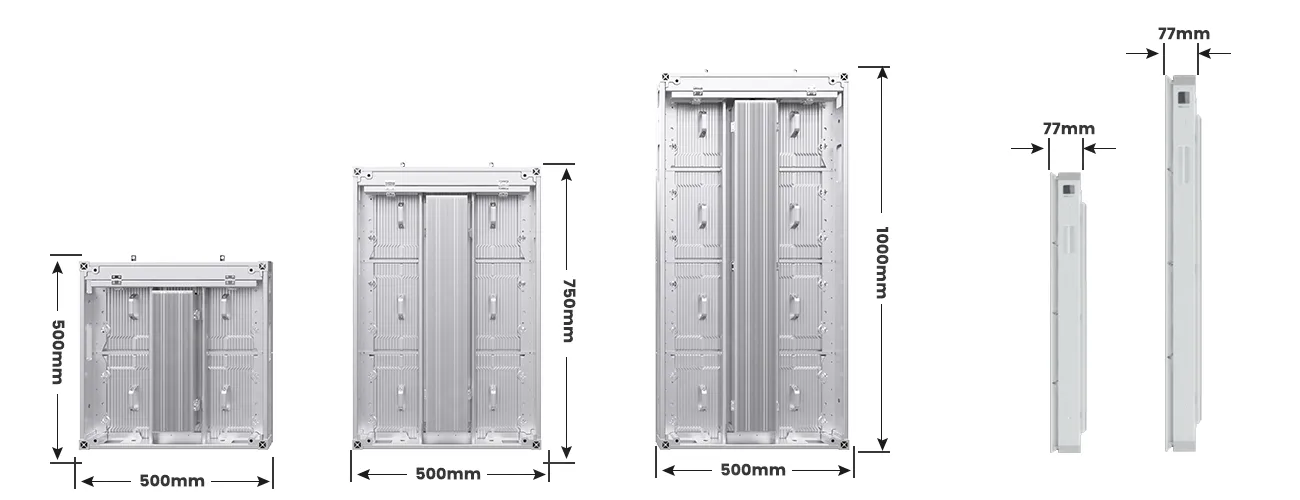

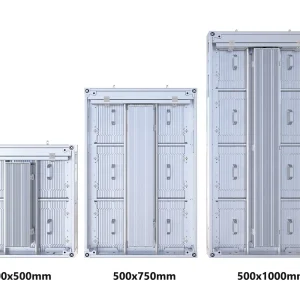

Cabinet size options: 500 * 1000mm/500 * 750mm/500 * 500mm Thickness: 77mm

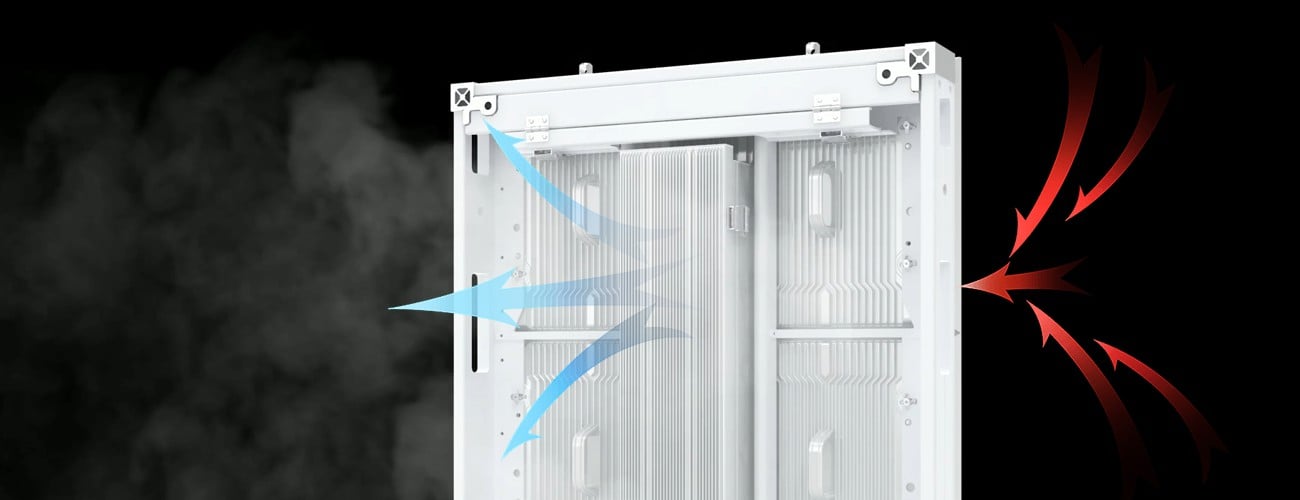

Self- cooling Technology
Full aluminum module Chassis and Power box with heat sink

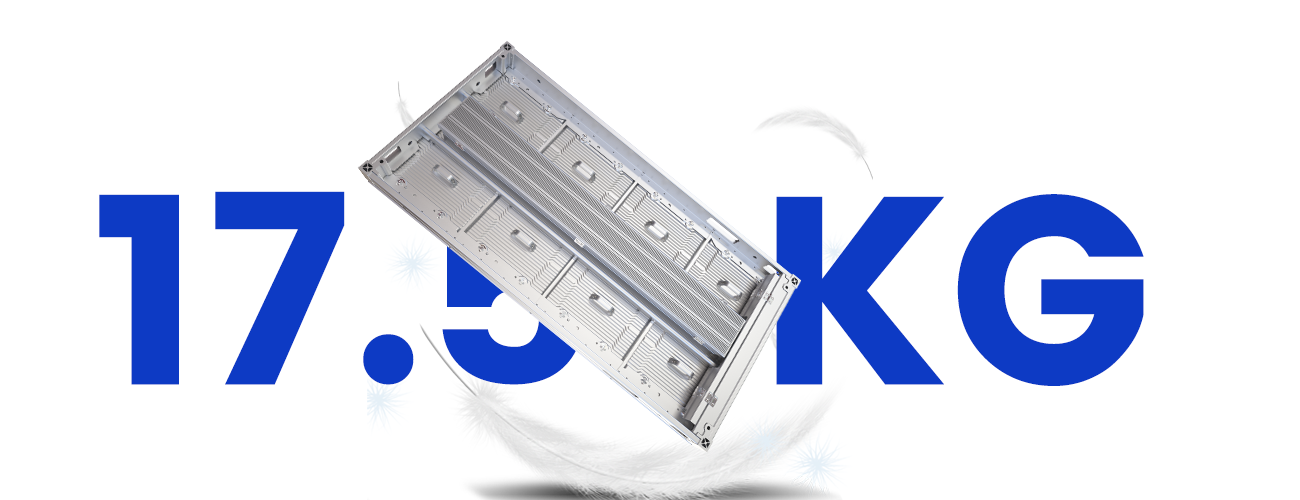

Light Weight
The weight of a single box is only 17.5KG, and the thickness of the box is 77MM. The box can be installed without structure. Although this display screen is also die-casting aluminum, its overall weight is lighter and thinner due to the better structural design.
IP66 Dustproof, Waterproof
It’s for outdoor application with high waterproof level and dust-proof level. It can resist some bad weather during outdoor events.

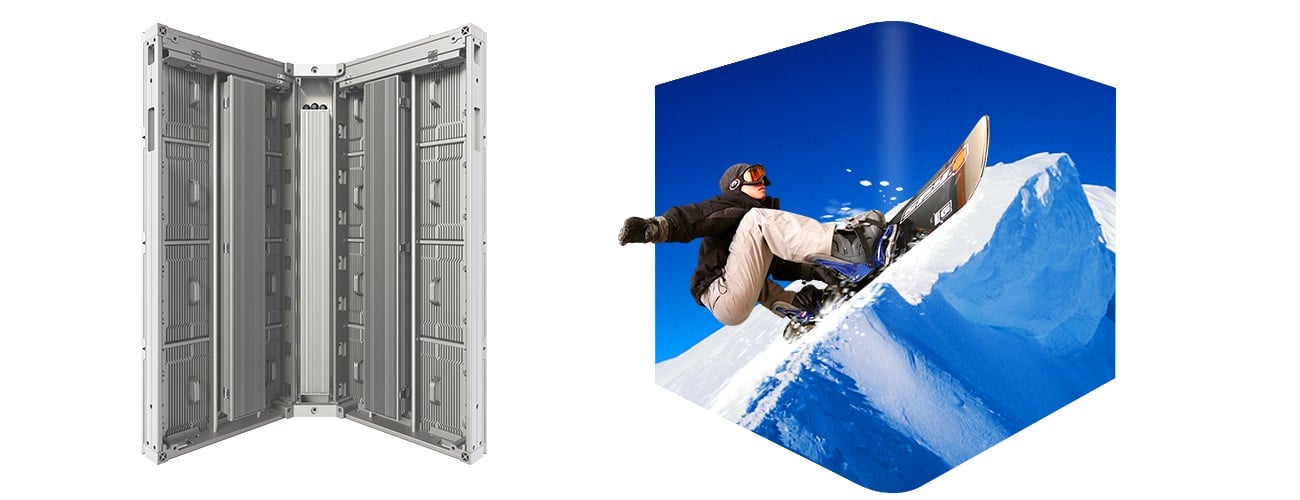

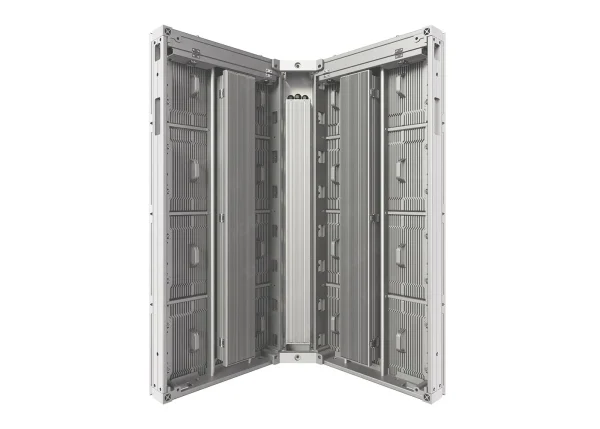

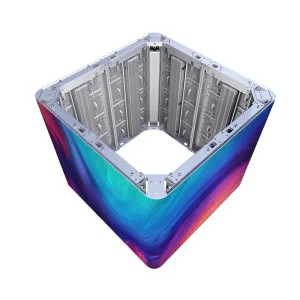

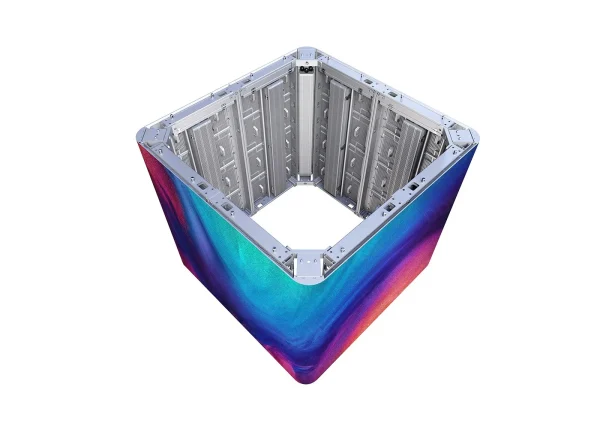

Perfect Curve
Seamless corner for VR solution
Installation

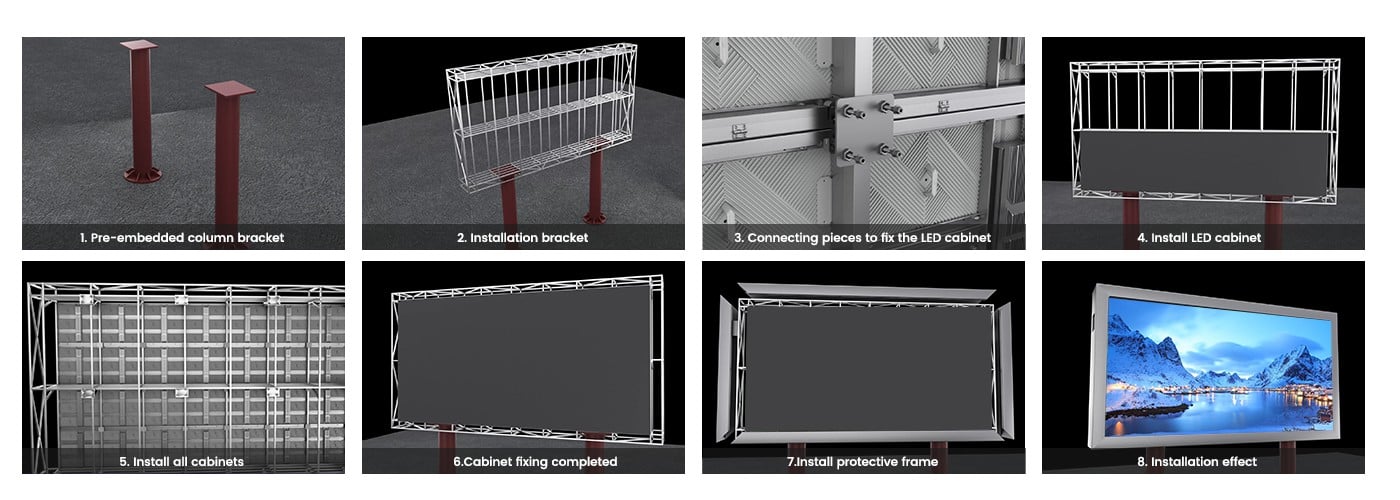

Installation Diagram

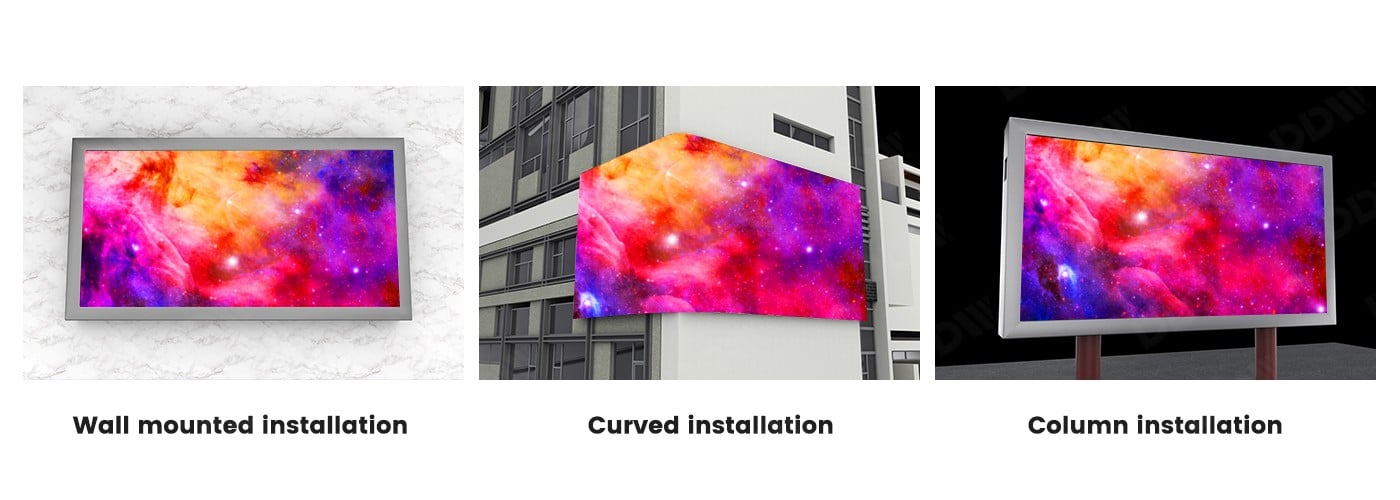

Wall mounting/Curved mounting/column mounting
DOOH Solution Platinum Aluminum Outdoor Fixed LED Display Screen Specifications
| Item Number | P2.9 | P3.9 | P2.6 | P5.7 | P6.66 | P8 | P10 |
| Pixel Pitch | 2.97 | 3.91 | 2.604 | 5.7 | 6.67 | 8 | 10 |
| Pixel Density | 112896 | 65536 | 147456 | 30625 | 22500 | 15625 | 10000 |
| LED Arrangement | SMD1515 | SMD1921 | SMD1415 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Resolution | 84×84 | 128×64 | 192×96 | 84×56 | 72×48 | 60×40 | 48×32 |
| Module Dimension | 250×250 | 500×250 | 500×250 | 480×320 | |||
| Module Weight | 1.0kg | 1.86kg | 1.86kg | 1.98kg | |||
| Module Thickness | 21.5mm | 21.5mm | 21.5mm | 20.5mm | |||
| Grey Scale (bit) | >15bit | >15bit | >15bit | 16>14bit | |||
| Brightness Level | 4500- 5500nits | 6500- 7000nits | 4000- 4500nits | 5500-6500nits | |||
| Cabinet Size(mm) | 500×500 | 500×500/500*750/500*1000 | 960*1280 960*960 1440*960 960*640 1440*640 | ||||
| Cabinet Weight(Kg) | 36KG/m² | 33KG/m² | 33KG/m² | 28KG/m² | |||
| Cabinet Thickness(mm) | 77mm | 77mm | 77mm | 74.3mm | |||
| Max Power Consumption/m | 700w/m² | 650w/m² | 650w/m² | 680w/m² | |||
| Ave Power Consumptionnt | 230w/m² | 230w/m² | 230w/m² | 205w/m² | |||
| Visual View Angle | 160/100° | 160/100° | 160/100° | 180/80° | |||
| Operating Temperature | （-30-55°） | ||||||
| Refresh Rate | >3840Hz | ||||||
| Protecting Rating | IP66 | ||||||
Accessories
Sending box
Power Supply
Receiving card
Aluminum module
Signal cable
Power cable
Fixings
Power cabinet
Additional information
| Weight | 35 kg |
|---|
